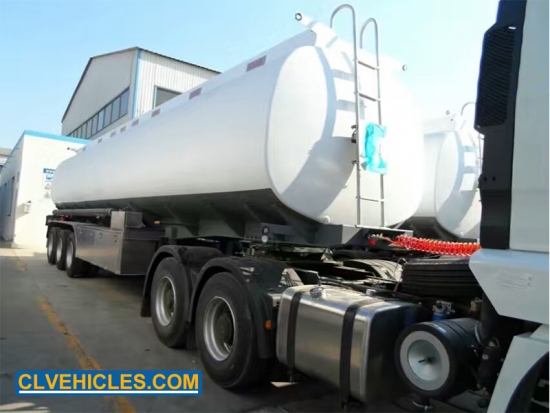

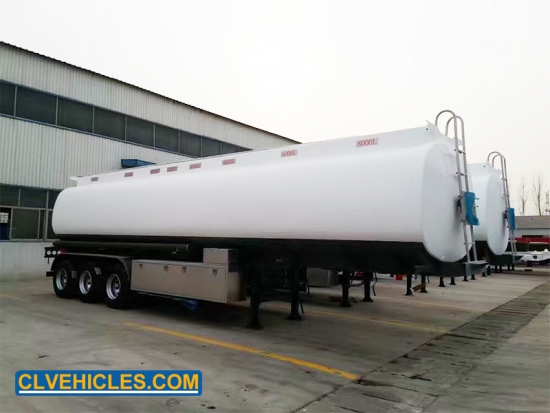

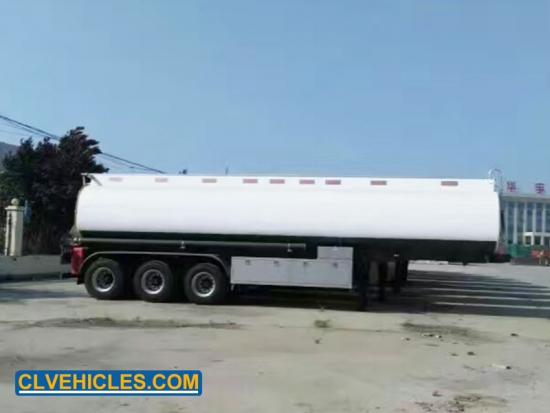

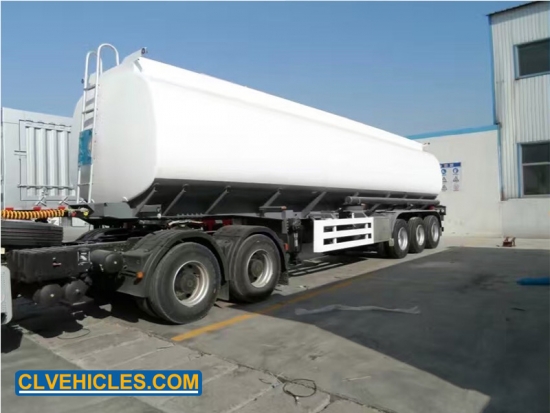

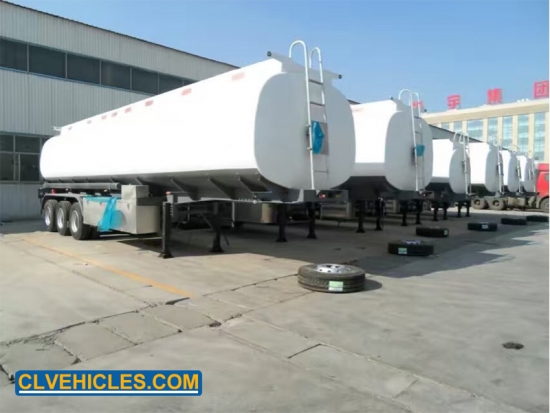

3 axles 43,000 Liters Liquid Diesel Oil Storage Tank Semi Trailer

According to different USES and using environment, there are various functions of oil filling or oil transportation, such as oil absorption, pump oil, various kinds of oil loading and distribution.

  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CL9400GYY
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 19200
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

3 axles 43,000 Liters Liquid Diesel Oil Storage Tank Semi Trailer

Fuel tank trailers Mainly used for oil derivatives’s (gasoline, diesel, crude oil, lubricating oil and coal tar oil) transport and storage. We can offer many kinds of oil tank trailers from 20000 liters to 70000 liters. Such as oil tank trailer, fuel tanker trailer, heavy oil tank trailer, fuel oil tank trailer, liquid tanker trailer, gallon fuel tank trailer, diesel oil tank trailer, oil transportation tank trailer, fuel tank cap trailer, etc. And also support Customized.


Quick Details


Semi-trailer type Fuel Tank Semi Trailer
Length 12000mm
Loading capacity 43000kg

Axle

FUWA


Applications


Oil tanker semi trailer is suitable for transporting liquid oil such as gasoline, kerosene, diesel oil, vegetable oil, edible oil, heavy oil, coal tar and non-petroleum products. The tank is equipped with multi-channel anti-wave bulkheads, which makes the tank body strong, stable and the vehicle carried safely and steadily.


Fuel tank semi trailer


Competitive Advantages

World's famous axle brand!——BPW and FUWA.

Various modes of suspension for your choice!—— air suspension, mechanical suspension, single point suspension.

Various kinds of tank material for your choice!—— Q235/carbon steel/CS/stainless steel/SS304/aluminium alloy.

European standard device available!—— oil and gas recovery device, emergency shutoff valve, anti-overflow device, overflow alarm, loading and unloading in the bottom of the tank, exhaust pipe, anti-static zipper, API valve, flow meter.

Division compartments available!


Product Details


 Oil tank semi trailerSemi-trailer


Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters



Tare Weight

About6.5T

Dimension
(The exact size depends on final design)

Length:12000 mm(outside dimension)

Width: 2500 mm(outside dimension)

Height: 3800mm(outside dimension)

Loading Capacity

43,000L

Tank Assembly

Front/Rear end plate

Material

Carbon steel

Thickness

6mm

Tank Body

Material

Carbon steel

Thickness

5mm

Compartment

Three compartment

Thickness

5mm

Insulating layer

Thickness

50mm

Material

Polyurethane foam

Outer layer

Carbon Steel

Thickness

1.2mm

Effect

±5℃in 24 hours

Discharging Valve

Diameter

3 inch

Number

3 PCS

Discharging Pipe

Diameter

3 inch

Type

Rubber hose, 2pcs

Cat Walk

with, Standard type

Running mechanism

Main beam

Material

Q235 Carbon steel

Plate

upper plate is 14mm, middle plate is 8mm,

Down plate is16mm

Height

500mm

Side  beam

Material

Q235 carbon steel

Thickness

16mm or 18mm channelsteel

Axle

Brand

FUWA

Type

13T

Number

3 PCS

Rim

Type

9.0-22.5

Number

13 PCS

Tire

Brand

Triangle brand

Type

12.00R22.5

Number

13 PCS

Suspension

Mechanical suspension for3 axle

Spring leaf

Leaf width

90mm

Leaf thickness

13mm

Layer/set

10 Layer

King pin

Brand

JOST brand

Type

Bolts type

Diameter

2.0 inch

Brake system

Air tank

45L air tanks

Brake chamber

6 double Spring brake chamber

ABS

Without

Landing gear

Brand

JOST brand

Type

JOST C200T

Accessories

Spare tire carrier

1 SET

Light

LED light

Voltage

24V

Receptacle

7 ways (7 wire harness) and quick change type

Tool box

One piece, 1m×0.5m×0.5m (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
